Project Description

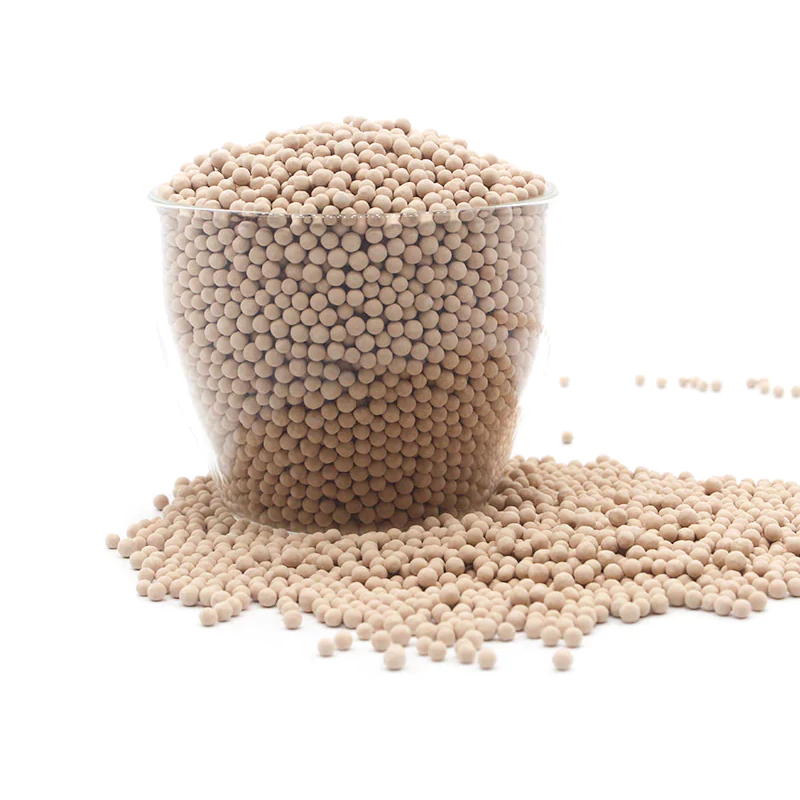

13X APG Molecular Sieve

CAS NO.:1318-02-1

Appearance: Sphere and Pellet

Standard Packaging: 25 KG/Carton box ,25 KG/Carton drum,150 KG/Steel drum

Delivery Time : 7-10 days

Quality Insurance: National StandardHG/T 2690-2012

20”GP Load :9-13.5 Tons      40”GP Load:18-27 Tons  (Palletized)

Inquiry

13X APG Molecular Sieve, is the sodium form of the type X crystal and has a much larger pore opening

than the type A crystals.

It will adsorb molecules with a kinetic diameter of less than 9 angstrom(0.9nm) and exclude those larger.

It have the highest capacity of the common adsorbents and very good mass transfer rates.

It can remove impurities too larger to fit into a type A crystal and is commonly used to separate N2 from O2.

Chemical Molecular Formula:

Na2O·Al2O3·2.45SiO2·6.0H2O.   (SiO2:Al2O3≈2.6-3.0).

Typical Application:

Removal of H2O from air for air cryo-separation application.

Model 13X APG Molecular Sieve
Nominal pore diameter 10 angstroms
Shape Sphere Pellet
Diameter 1.7-2.5 (mm) 3.0-5.0 (mm) 1.6 (mm) 3.2 (mm)
8*12 (mesh) 4*8 (mesh) 1/16 (inch) 1/8 (inch)
Bulk density (g/ml) ≥0.64 ≥0.64 ≥0.61 ≥0.61
Crushing strength (N/PC) ≥25.0 ≥75.0 ≥25.0 ≥45.0
Size ratio up to grade (%) ≥98.0 ≥98.0 ≥95.0 ≥95.0
Static H2O adsorption (%) ≥25.0 ≥25.0 ≥25.0 ≥25.0
Static CO2 adsorption (%) ≥18.0 ≥18.0 ≥17.0 ≥17.0
Water content (%) ≤1.5 ≤1.5 ≤1.5 ≤1.5
Wear ratio (%) ≤0.20 ≤0.20 ≤0.40 ≤0.40
